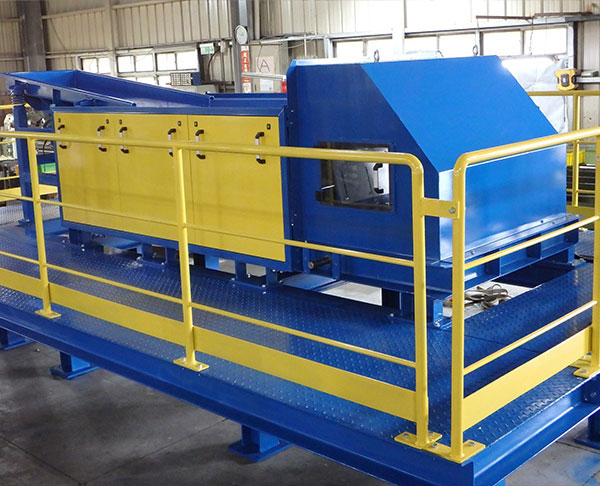

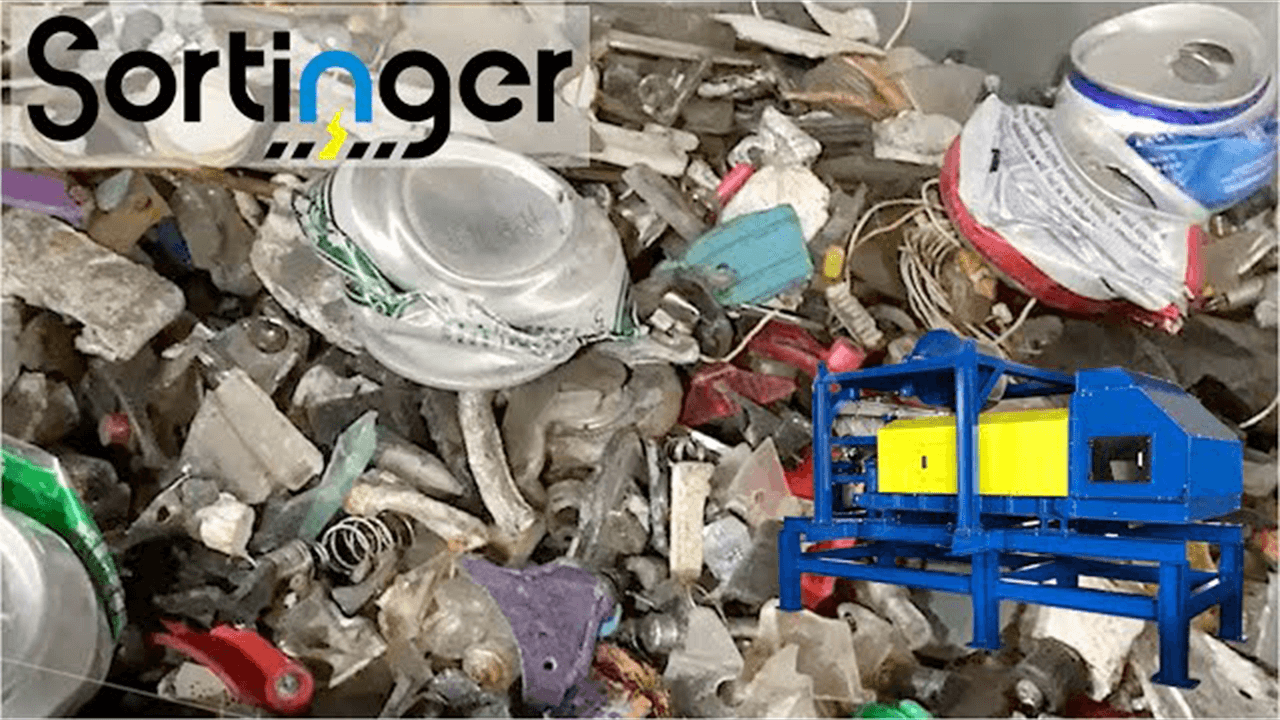

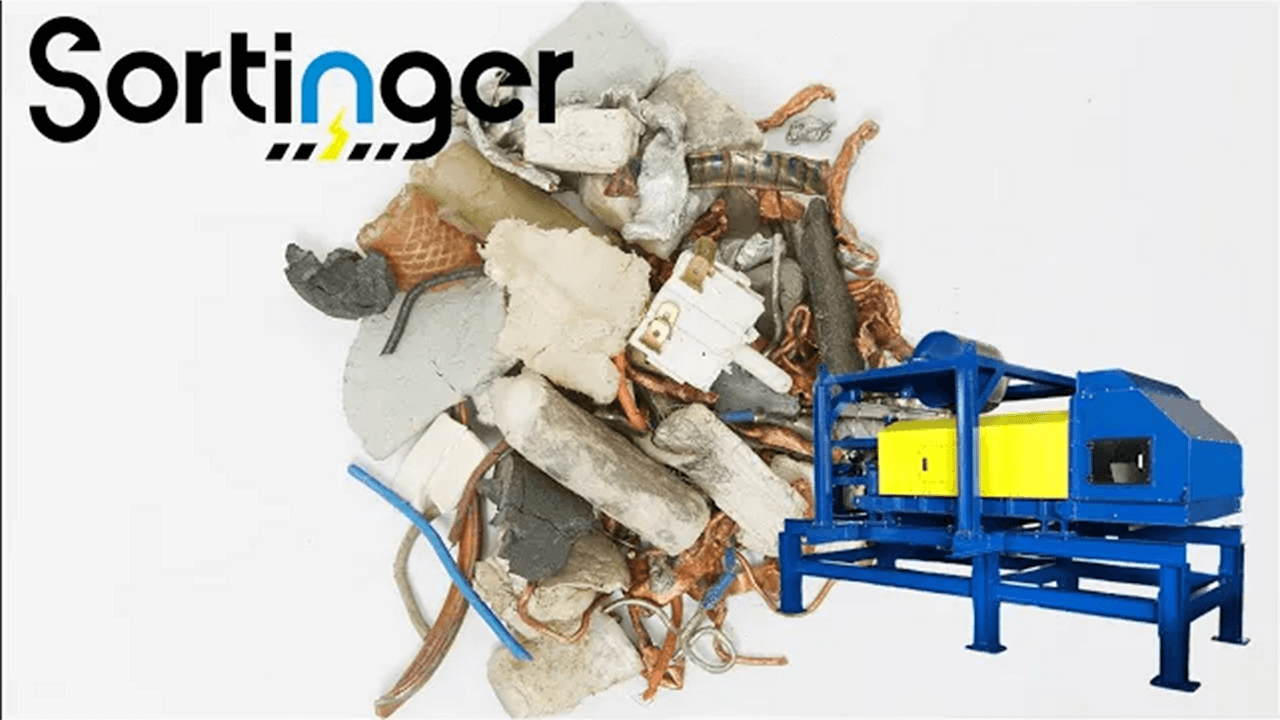

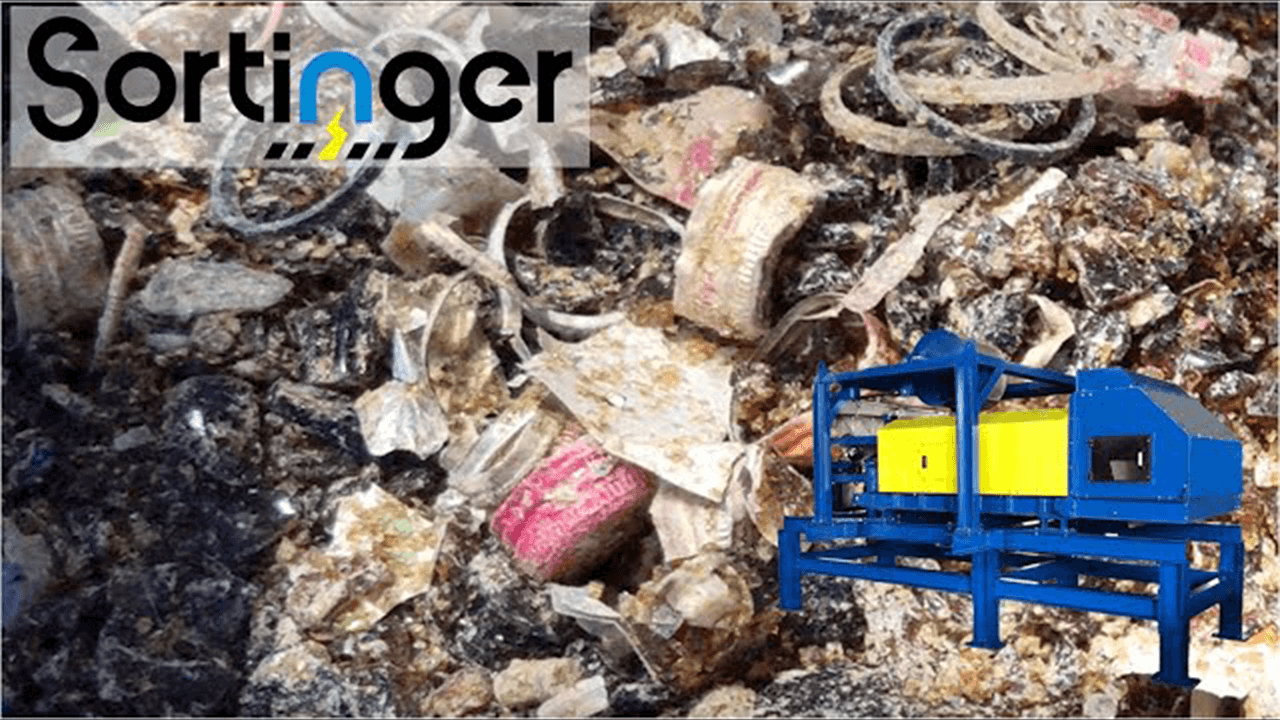

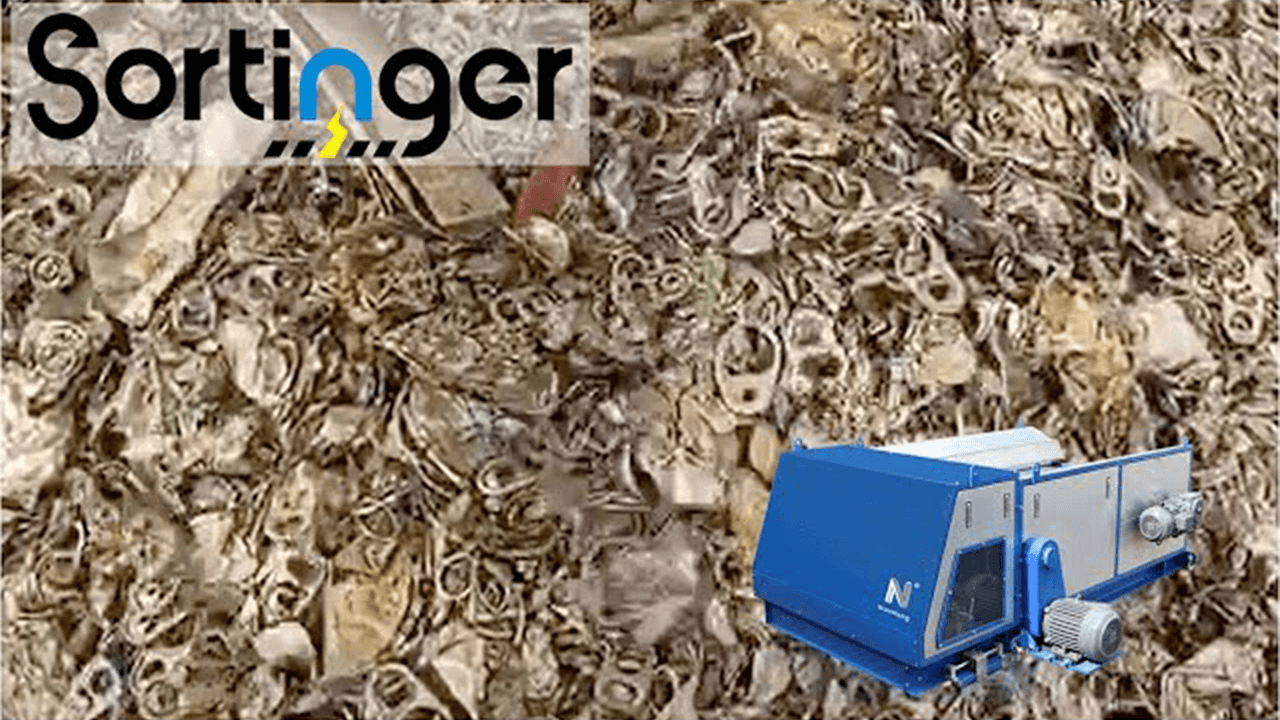

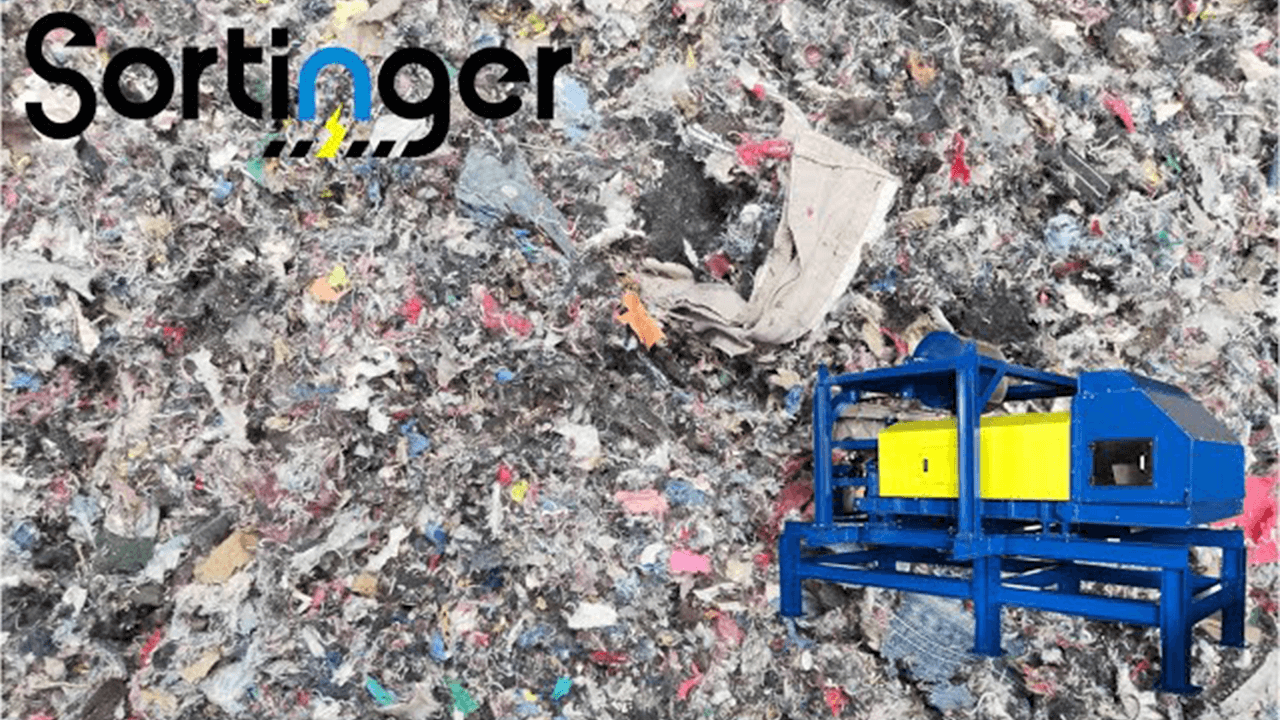

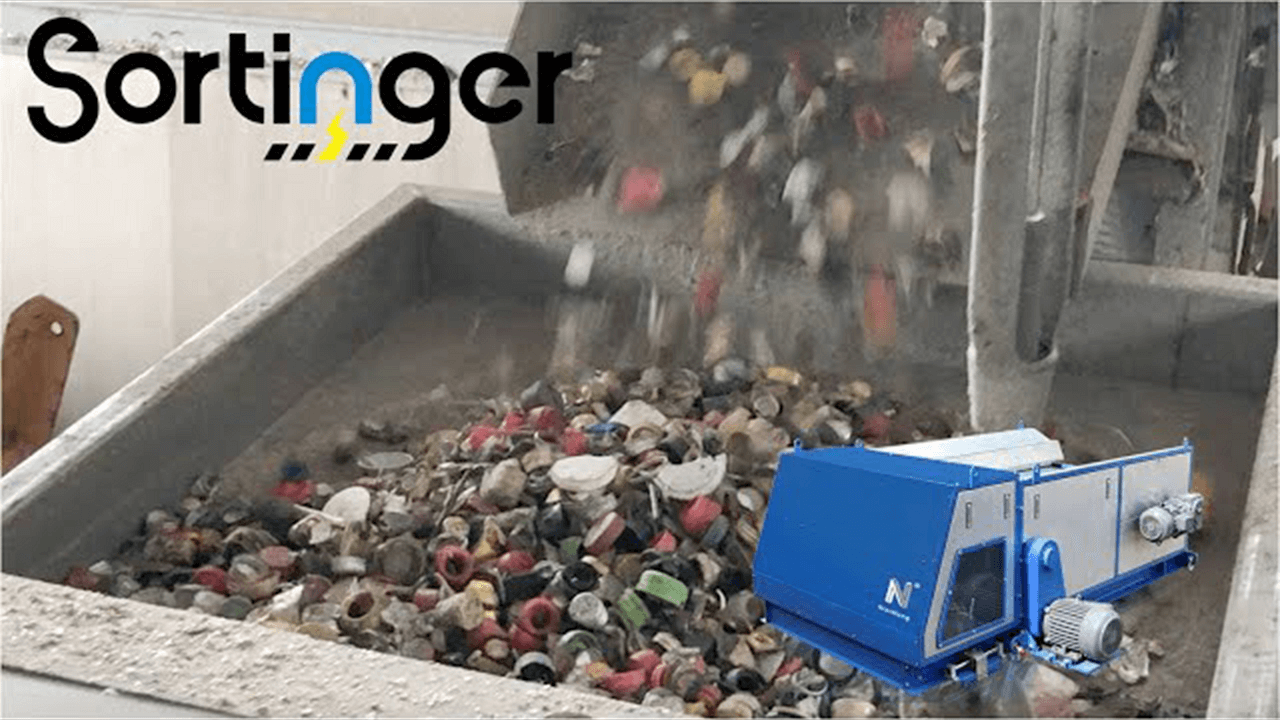

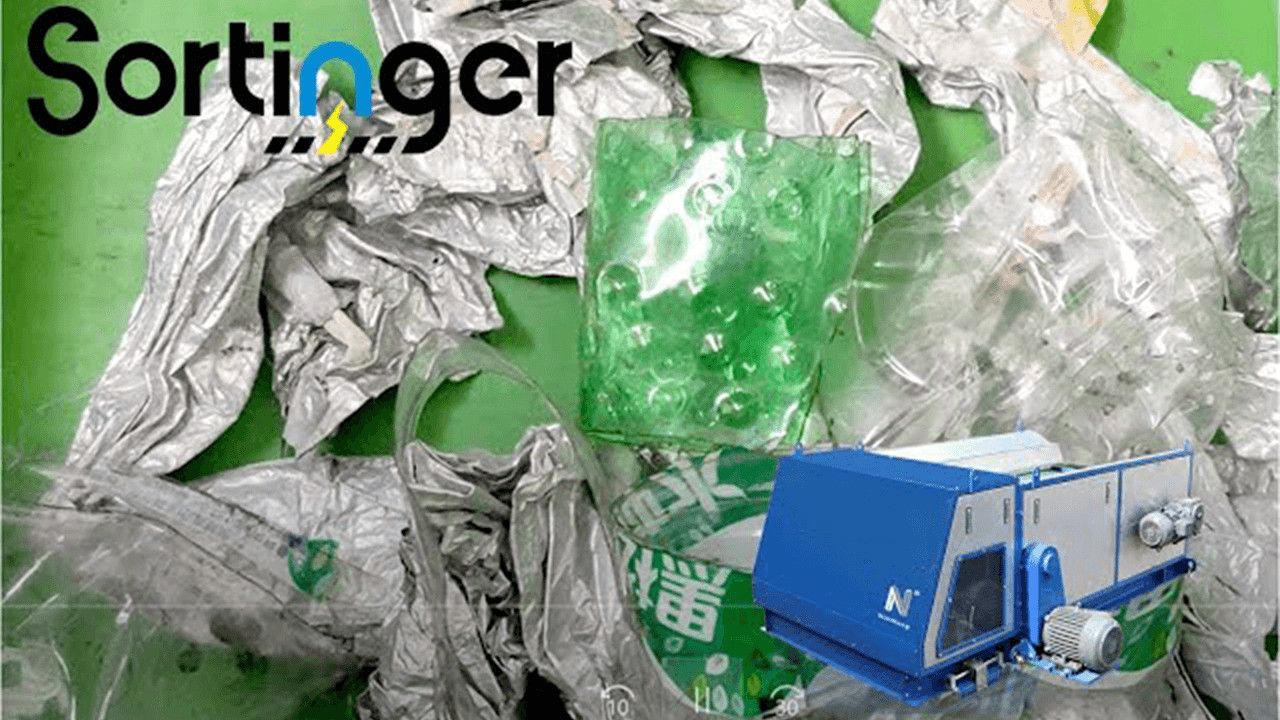

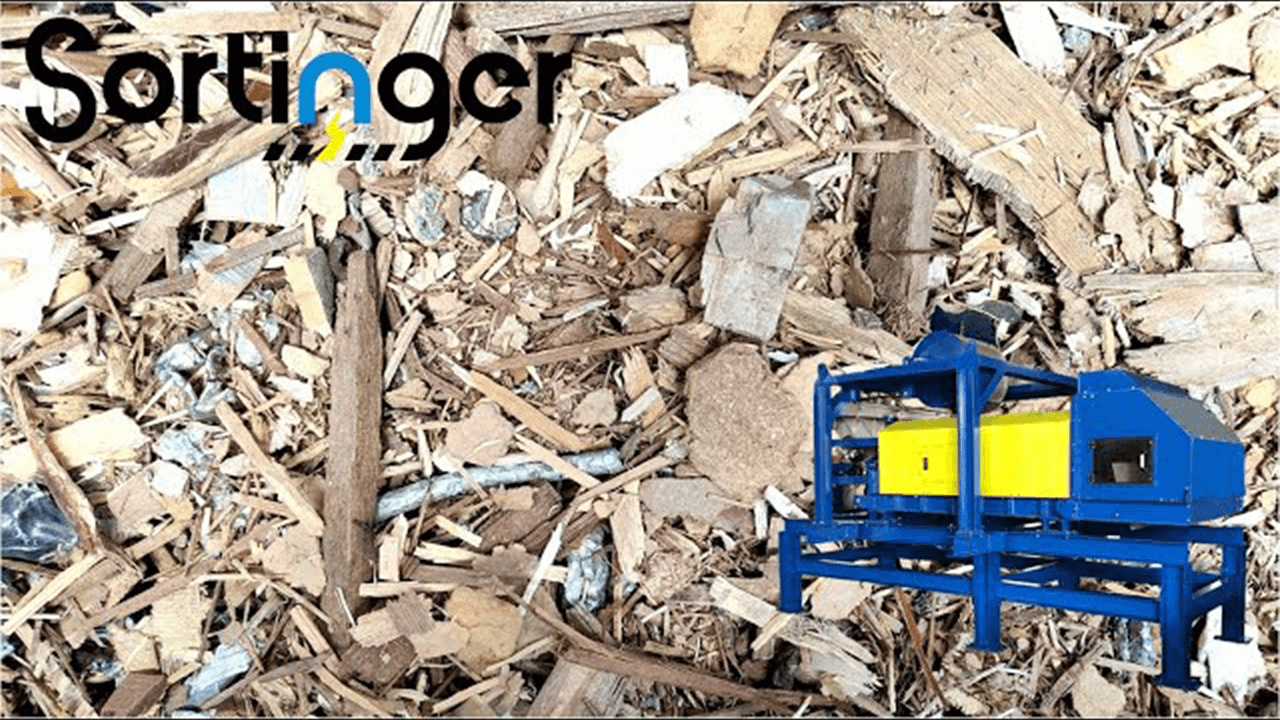

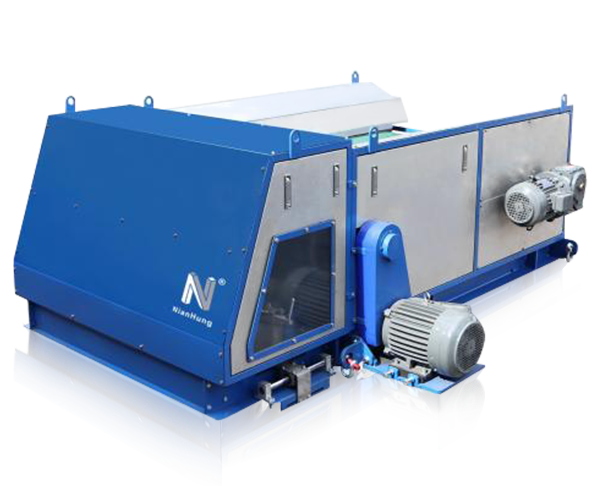

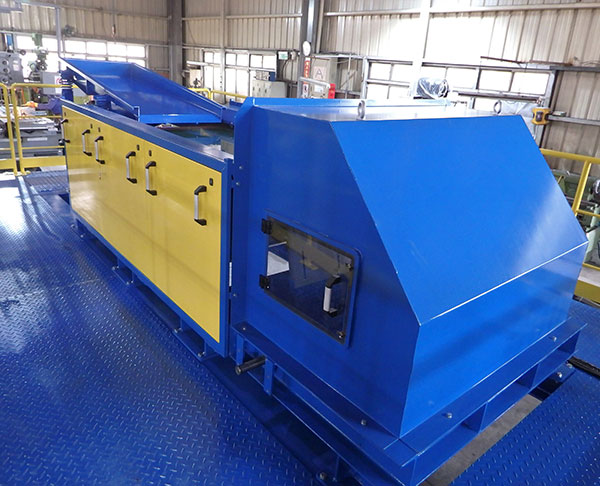

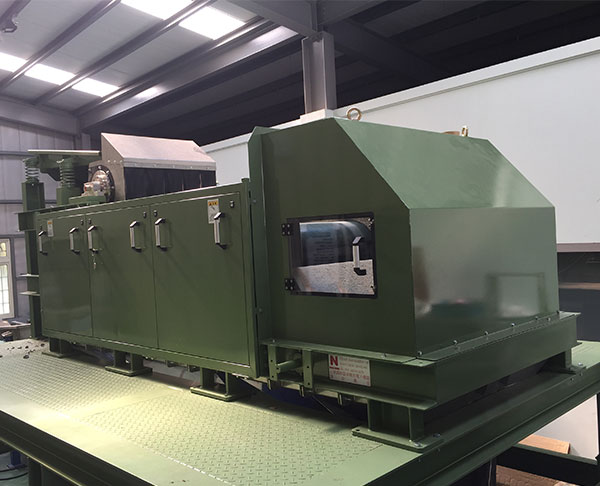

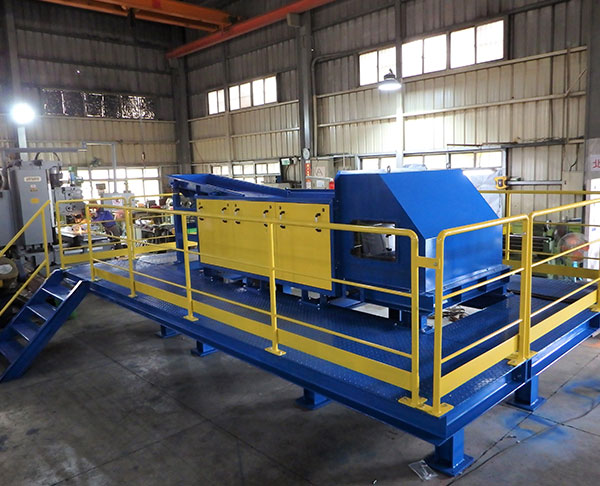

Eddy Current Separator

Eddy Current Separator 's Features

1. Two models available : ENH-L for metal particles larger than 10mm.ENH-S for metal particles smaller than 10mm.
2. Vibration feeder provides stable feed rate which can increase the sorting efficiency.

Specification

1. Magnet drum speed:
 Model ENH-L : Max. 1800 rpm
 Model ENH-S : Max. 2500 rpm
2. Controller included

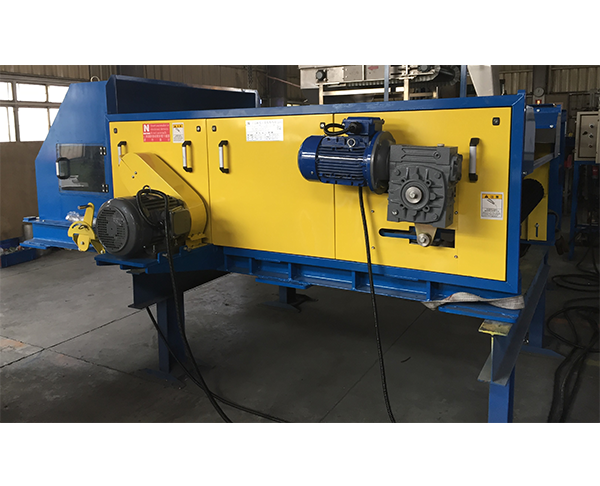

3. Belt drive with hybrid gear motor
4. Customization of machine to meet the needs of customer


ENH-L Serials
Model Body Dimensions (mm) (RPM) Belt Speed
(m/min)
Power Output (kW) Weight
(KG)
L W1 W2 H Belt Width Belt Roller
ENH-L600 2850 1800 1850 950 600 3000
(Variable)
20-100
(Variable)
1.5 3.7 1600
ENH-L800 3000 2000 2050 800 2000
ENH-L1000 3100 2200 2250 1000 2.2 5.5 2500
ENH-S Series
Model Body Dimensions (mm) (RPM) Belt Speed (m/min) Power Output (kW)
Weight
(KG)
L W1 W2 H Belt Width Belt Roller
SENH-S300 1840 1300 1335 1200 300 2500(Variable) 20-100
(Variable)
0.75 2.2 1000
SENH-S600 2000 1500 1535 600 3.7 1200
index_materials_icon

Materials Test

Sortinger provides customers with material testing services. There is a complete testing center at our plants. Our design group would further discuss customized planning according to clients’ factory size or material characteristics, to ensure the best and the most suitable solutions for their materials.
