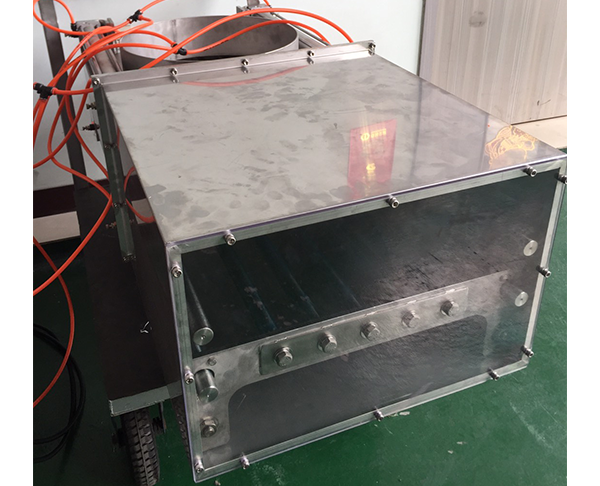

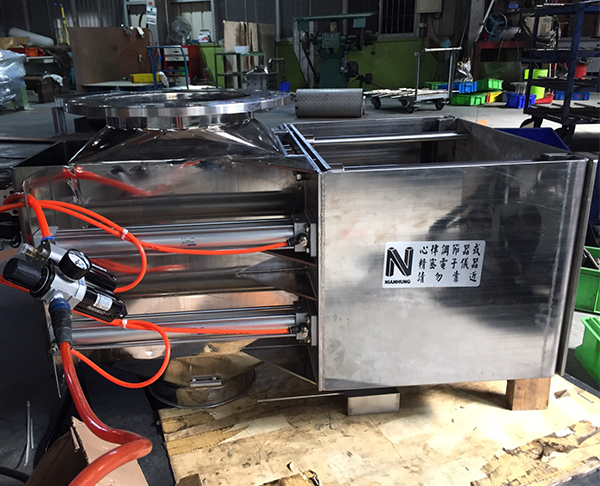

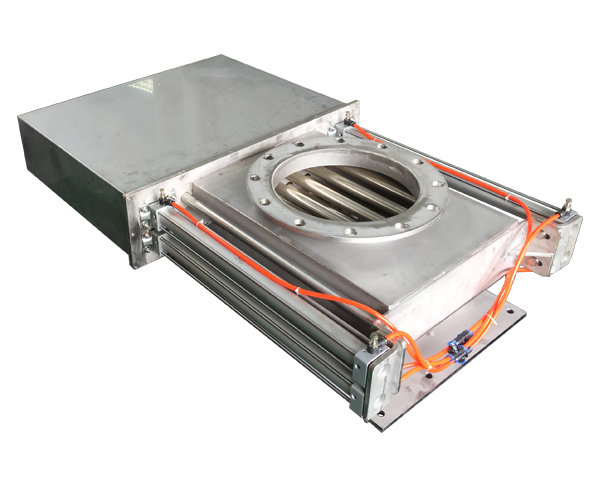

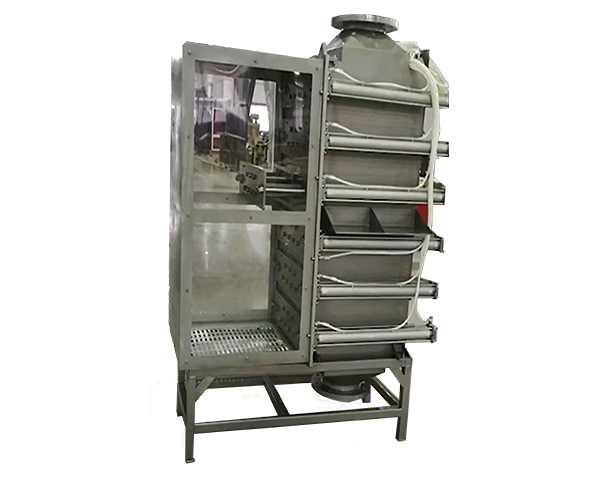

Pneumatic Magnetic Box / Automatic Iron Removal Box

Pneumatic Magnetic Box / Automatic Iron Removal Box 's Features

  1. Magnetic Force on bar surface can reach 13000 Gauss.
  2. Custom sizes and designs available.
  3. It is also possible to design flange, iron hoop to connect with production line.
  4. The tube surface can be processed with teflon and nitriding.
  5. Complete welding design for easy cleaning.

Specification


  1. Magnetic Force between 3,000 to 13,000 according to be designed according to customer needs.
  2. Pipe Material: SUS304, SUS316 Tube Diameter: φ 25.4 mm
  3. Double tube design with pneumatic installation, can remove iron automatically.


Video

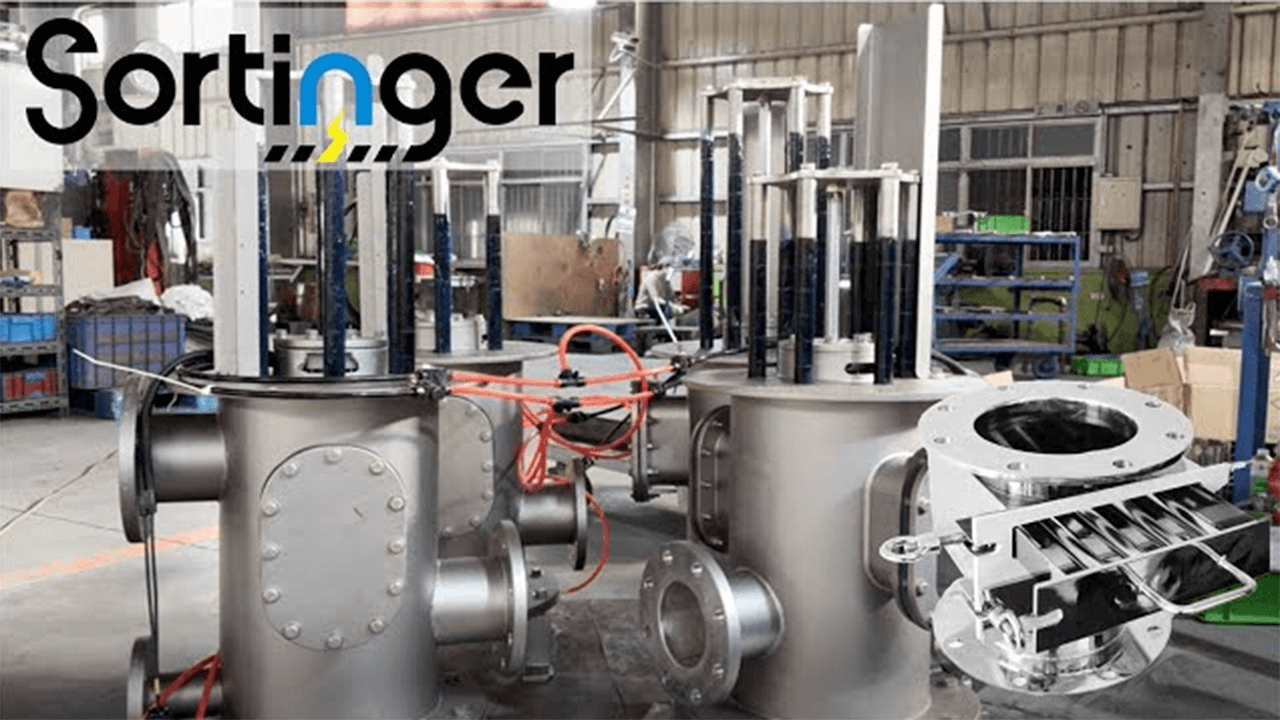

iron pneumatic magnetic box

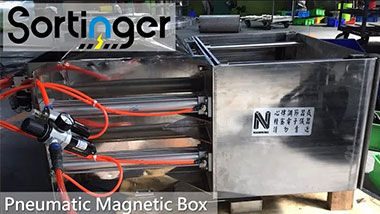

Pneumatic Magnetic Box|Demo Video|Sortinger

Pneumatic Magnetic Box|Remove iron particles automatically|Sortinger

Pneumatic Magnetic Box|Remove iron particles automatically|Sortinger
