Pneumatic Magnetic Separator

Usage

Pneumatic Magnetic Separator is designed to install above and 90 degrees to the conveyor belt to remove scrap metals by pneumatic cylinder from the materials on the moving conveyor.

Pneumatic Magnetic Separator 's Features

Features
1. Only require air compressor, completely free of electricity
2. Tough durable design is suitable for outdoor use
3. After the magnetic substance and the iron-containing impurities are absorbed up, they are automatically removed through the pneumatic cylinder, saving manpower.

Specification

1. Highest magnetic force can reach 5000 Gauss.
2. Customization of machine to meet the needs of customer.
3. Pneumatic cylinders can be equipped with an inductive switch to control the stroke distance.


Swipe your finger

PNH Series
Model Magnetic Force (GAUSS) Attraction Distance (mm) Belt Width (mm) Body Dimensions (mm) Pneumatic CylindersStroke Distance(mm) Power Output
(KG)
Hanging Way Weight
(KG)
L W1 W2 H
PNH-8003 3000 300 800 2100 970 1010 550 1300 (可變Variable) 1000 十字 700
PNH-10003 1000 900
PNH-8004 4000 400 800 900
PNH-10004 1000 1100
PNH-8005 5000 500 800 1100
PNH-10005 1000 1300

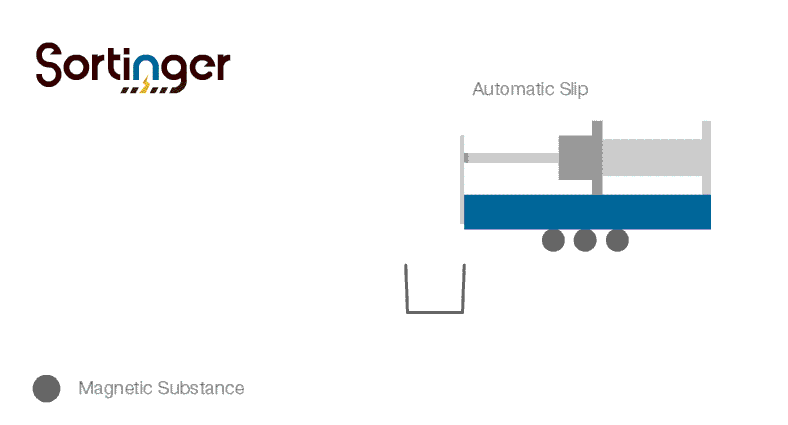

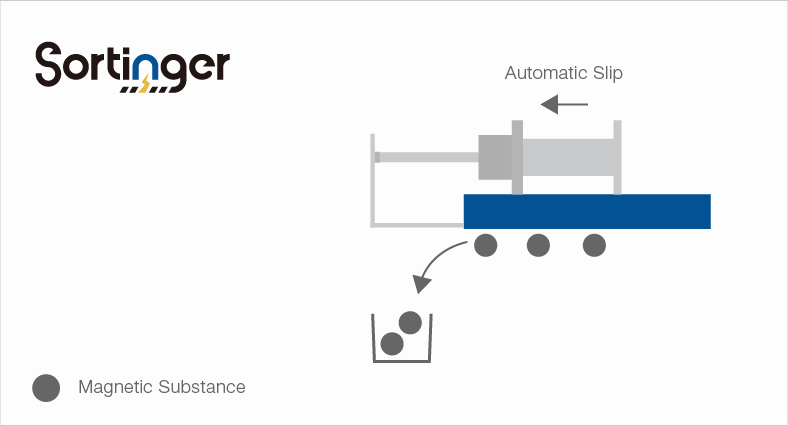

Machine operation

Pneumatic Magnetic Separator
