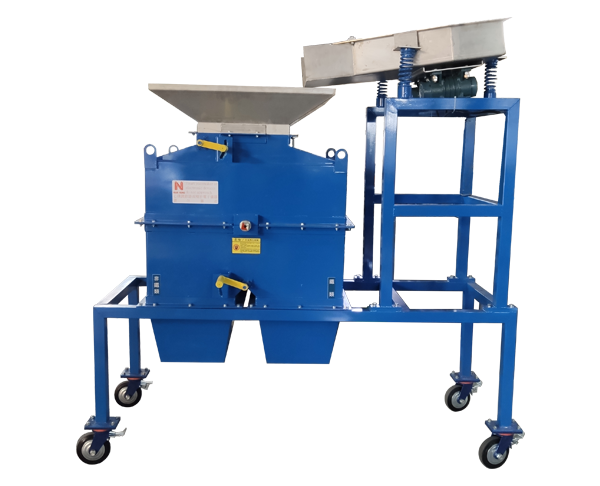

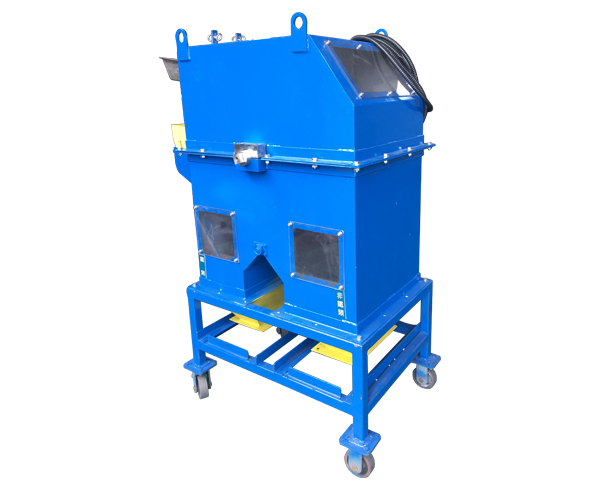

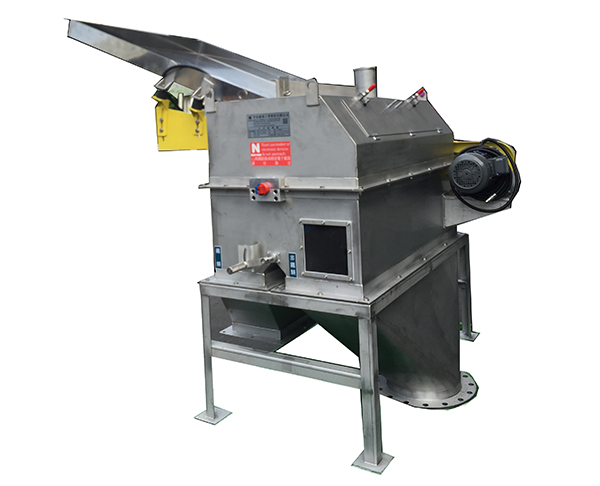

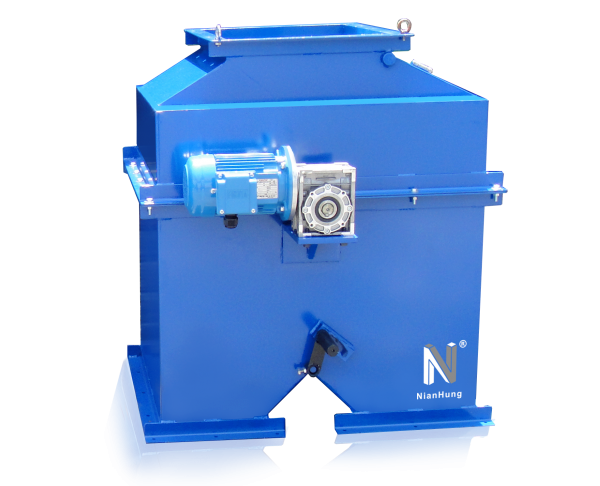

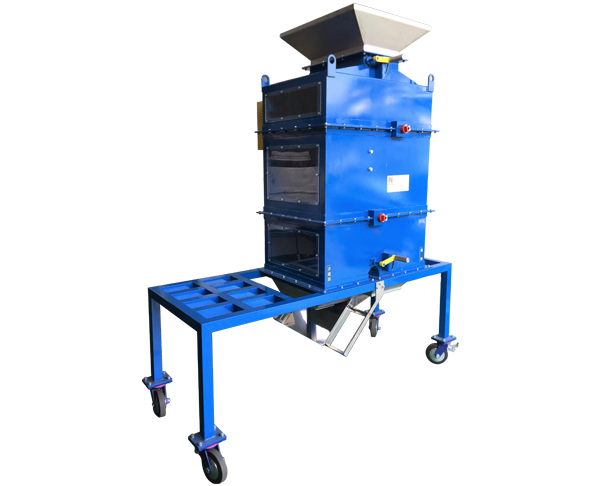

Vertical Magnetic Separator

Vertical Magnetic Separator 's Features

1. Only motor power is required
2. Tough durable design is suitable for outdoor use.

Specification

1. Highest magnetic force can reach 8,000 Gauss.
2. Customization of machine such as dimensions, models or specifications to meet the needs of customer.


Swipe your finger

VNH Series
Model Magnetic Force (GAUSS) Body Dimensions (mm) Outer Diameter Φ
(mm)
(RPM) Power Output (kW) Weight
(KG)
L W1 W2 H Belt Width
VNH-600 1000
~
8000
650 730 755 1100 600 400
(Variable)
20 ~ 40 0.75 350
VNH-800 750 930 955 800 400
VNH-1000 850 1130 1155 1000 1.5 480

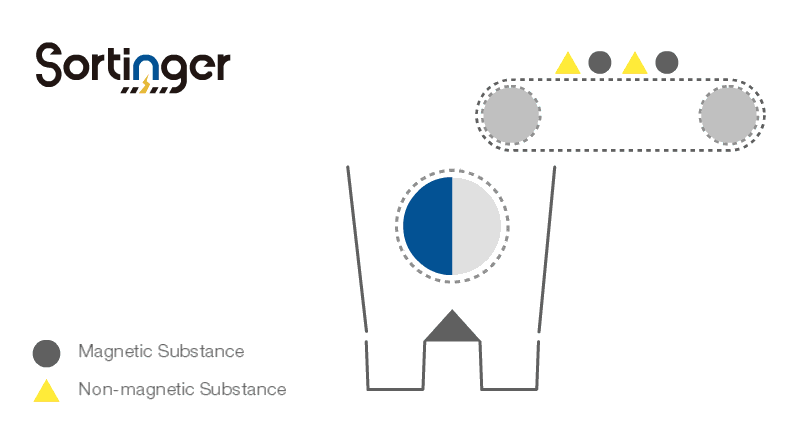

Machine operation

Vertical Magnetic Separator

Video

Vertical Magnetic Separator|Iron Slag & Bottom Slag|Sortinger

Vertical Magnetic Separator|Iron Slag & Bottom Slag|Sortinger

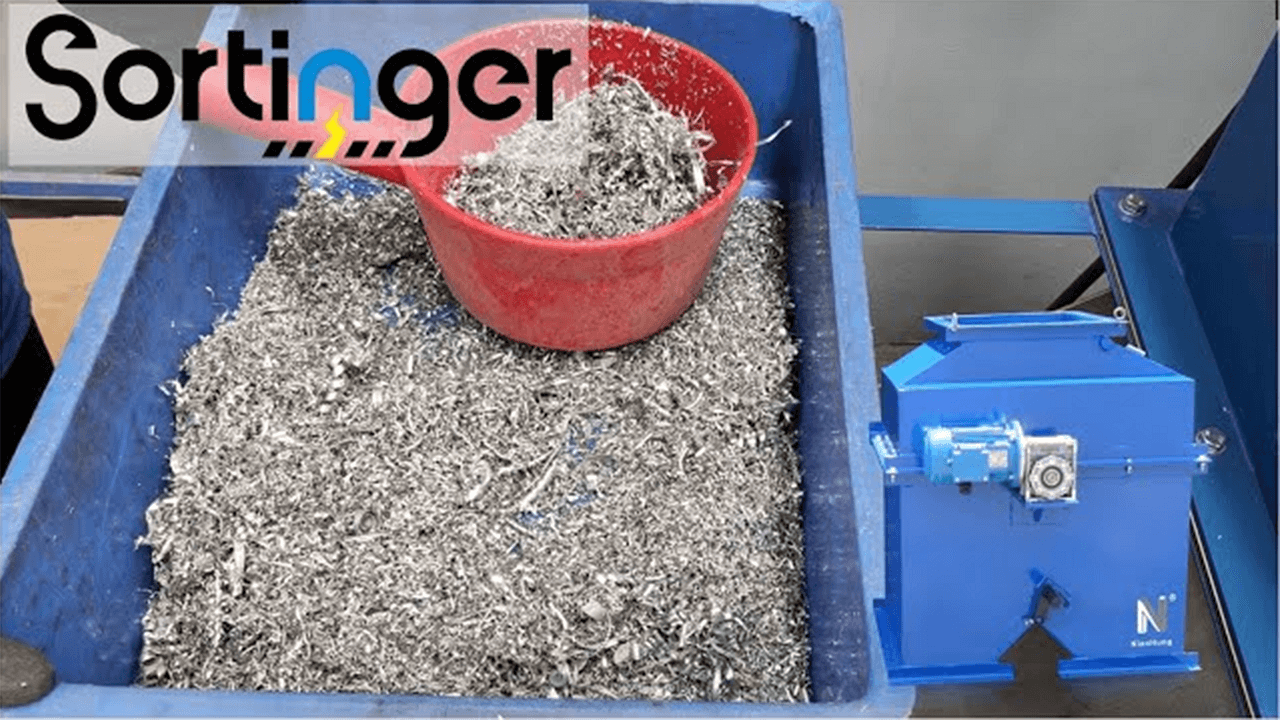

Vertical Magnetic Separator|Aluminum & Iron Scrape|Sortinger

Vertical Magnetic Separator|Aluminum & Iron Scrape|Sortinger

Vertical Magnetic Separator|Copper Powder and Iron Powder|Sortinger

Vertical Magnetic Separator|Copper Powder and Iron Powder|Sortinger

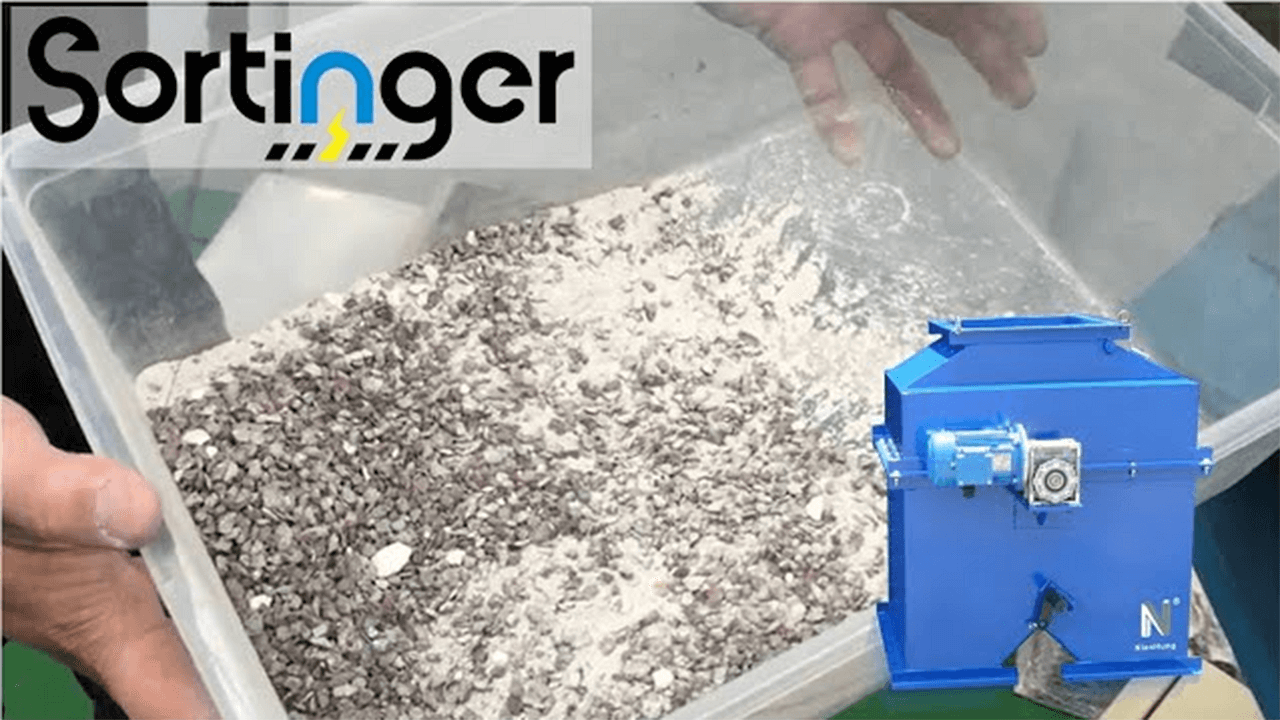

Vertical Magnetic Separator|Silica Powder and Iron Particles|Sortinger

Vertical Magnetic Separator|Silica Powder and Iron Particles|Sortinger

Vertical Magnetic Separator|CNC Fe & Al waste chip|Sortinger

Vertical Magnetic Separator|CNC Fe & Al waste chip|Sortinger

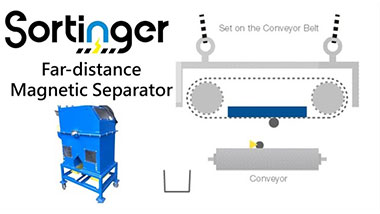

Far-distance Magnetic Separator |Sortinger

Far-distance Magnetic Separator |Sortinger

Download

Download

Vertical Magnetic Separator

.pdf | 838.37 KB

Download

Download

index_materials_icon

Materials Test

Sortinger provides customers with material testing services. There is a complete testing center at our plants. Our design group would further discuss customized planning according to clients’ factory size or material characteristics, to ensure the best and the most suitable solutions for their materials.

Show Detial
