Non-Contact Magnetic Transmission Drives

Non-Contact Magnetic Transmission Drives 's Features

1. Ultra quiet operation
2. No wear, steady and smooth drive
3. No maintenace required : No need to replace parts from wear problems
4. Ultra-low particle generation : In the non-contact state, there is no oil stain, vibration and noise from the gear and it will not generate dust due to friction

Specification

Swipe your finger

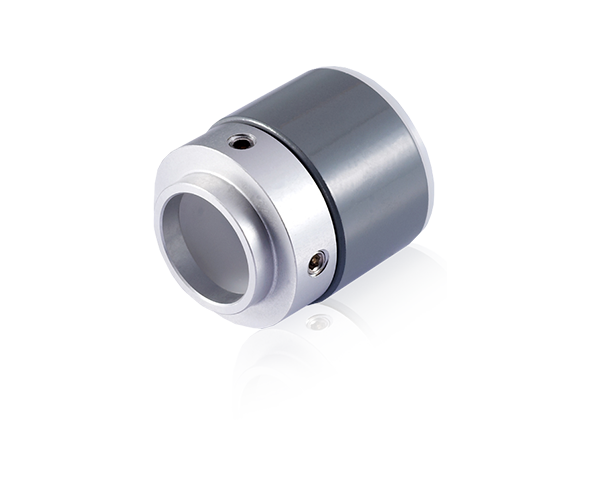

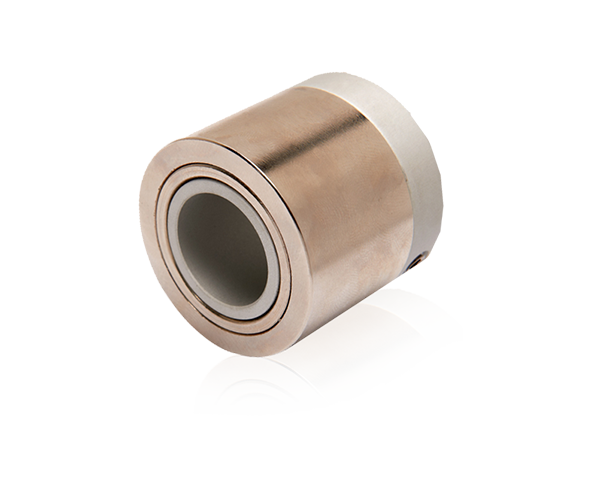

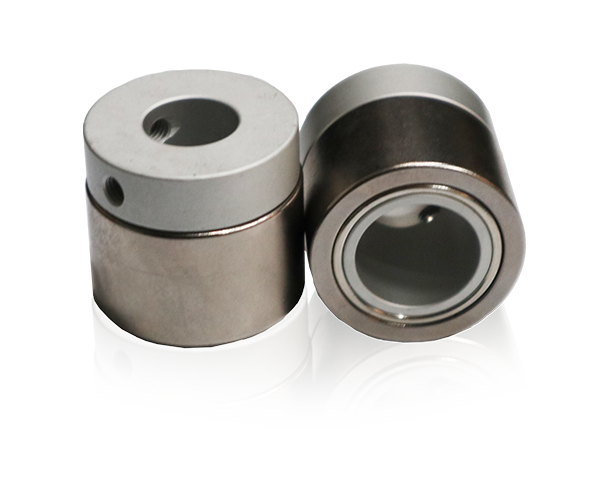

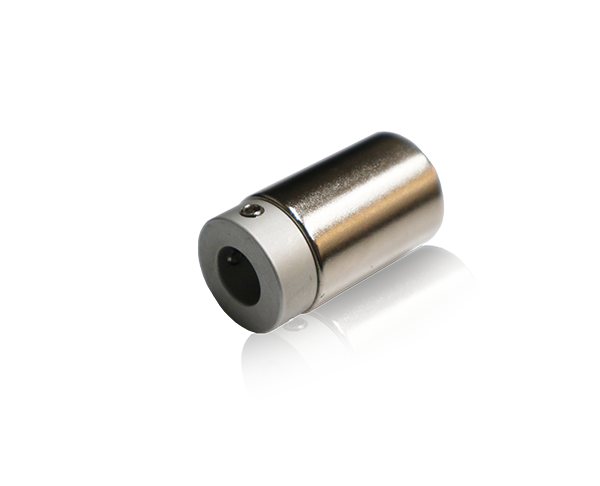

ND Type: Neodymium Bonded Magnet
Type Combined Type Material Surface Treatment

ND Type

NDL Perpendicular Type ①Magnet Section ②Holder Section ①Magnet Section ②Holder Section
NDU Parallel Type  Sintered Magnet A5056 Aluminum Alloy Out-gassing Prevention Treatment

最高轉速 1500 rpm

ND Series
Model Outer Diameter ∅ D Axial ∅ d (+0.15)¦(+0.05) Magnet Height h (mm) No. of Poles (P)
ND21 21 10 25 6
30
ND26 26 12 14.1 20
15
ND35 35 15 15 8
21.5
20 15
21.5
ND42 42 15 21 12
20

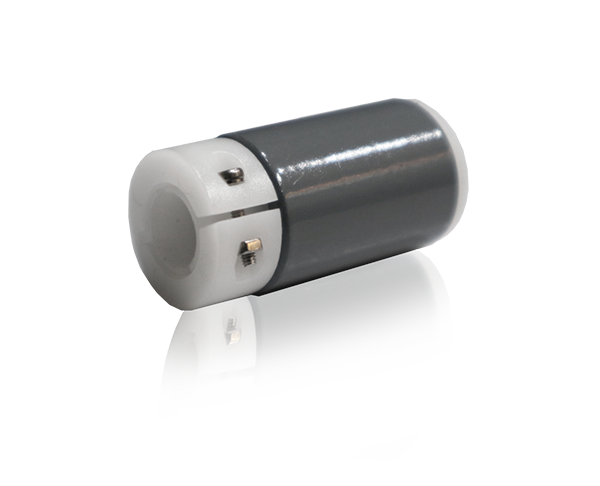

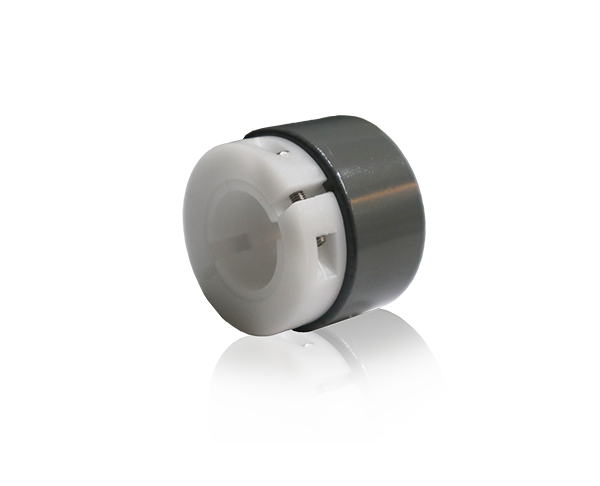

MQ Type: Neodymium Bonded Magnet
Type Combined Type Material  Surface Treatment

MQ Type

MQL Perpendicular Type ①Magnet Section ②Holder Section ①Magnet Section ②Holder Section
MQU Parallel Type Neodymium Bonded Magnet (POM) Polyacetal (D16: 5056 Aluminum Alloy) Out-gassing Prevention Treatment Electrostatic Paint

最高轉速 1500 rpm

MQ Series
Model Outer Diameter ∅ D Axial ∅ d (+0.15)¦(+0.05) Magnet Height h (mm) No. of Poles (P)
MQ21 21 10 15 6
20
30
MQ26 26 15 14 8<
MQ32 32 15 20 8
20
MQ35 35 15 21.5 8
20
MQ42 42 15 21 12
20
