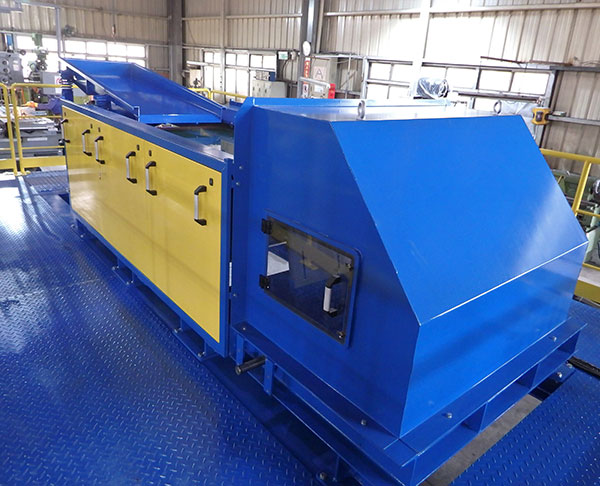

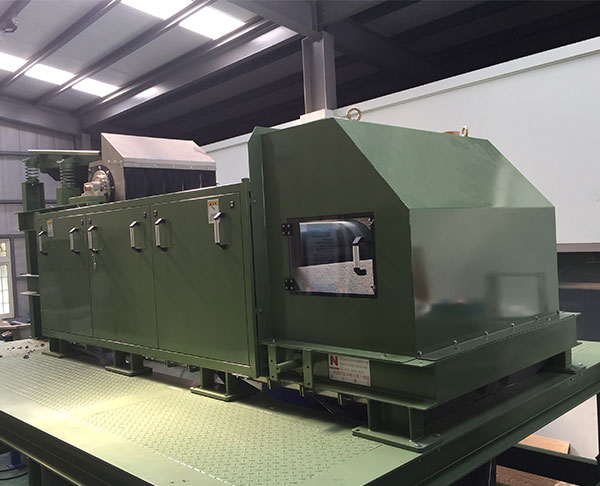

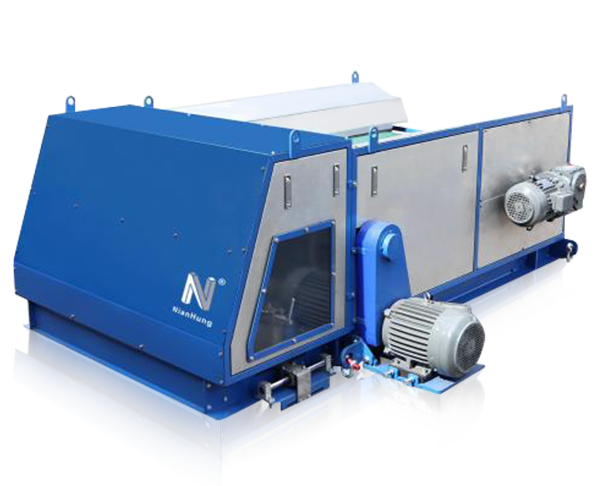

Eddy Current Separator

Eddy Current Separator 's Features

1. Two models available : ENH-L for metal particles larger than 10mm.ENH-S for metal particles smaller than 10mm. 2. Vibration feeder provides stable feed rate which can increase the sorting efficiency. test

Specification

1. Magnet drum speed:
 Model ENH-L : Max. 2000 rpm
 Model ENH-S : Max. 2500 rpm
2. Controller included
3. Belt drive with hybrid gear motor
4. Customization of machine to meet the needs of customer


Application :

PRODUCT

SIZE RANGE(mm)

MAX(t/hr/m)

Aluminum Scrap (Oversize)

20-200

20

Aluminum Scrap (Screened)

0-20

5

Household Refuse (unsorted)

0-300

20

Household Refuse (pre-sorted)

50-200

10

Glass - Cullet (bottles Crushed)

0-50

20

Glass - Light Bulbs (Crushed)

0-30

7

Slag

10-50

10

Incineration Ash

0-40

20

Plastic Waste (tiny scrap)

3-10

2

Scrap (Oversized Frag)

100-150

20

Scrap (Screened)

10-40

15

UPVC Window Frames (Screened) UPVC

10-40

20

WEEE (Electronic Scrap) WEEE

0-30

20

White Goods

40-150

20

Woodchip

0-60

13


Models

Swipe your finger

ENH-L Serials
Model Body Dimensions (mm) (RPM) Belt Speed
(m/min)
Power Output (kW) Weight
(KG)
L W1 W2 H Belt Width Belt Roller
ENH-L600 2850 1800 1850 950 600 3000
(Variable)
20-100
(Variable)
1.5 3.7 1600
ENH-L800 3000 2000 2050 800 2000
ENH-L1000 3100 2200 2250 1000 2.2 5.5 2500

Swipe your finger

ENH-S Series
Model Body Dimensions (mm) (RPM) Belt Speed (m/min) Power Output (kW)
Weight
(KG)
L W1 W2 H Belt Width Belt Roller
SENH-S300 1840 1300 1335 1200 300 2500(Variable) 20-100
(Variable)
0.75 2.2 1000
SENH-S600 2000 1500 1535 600 3.7 1200

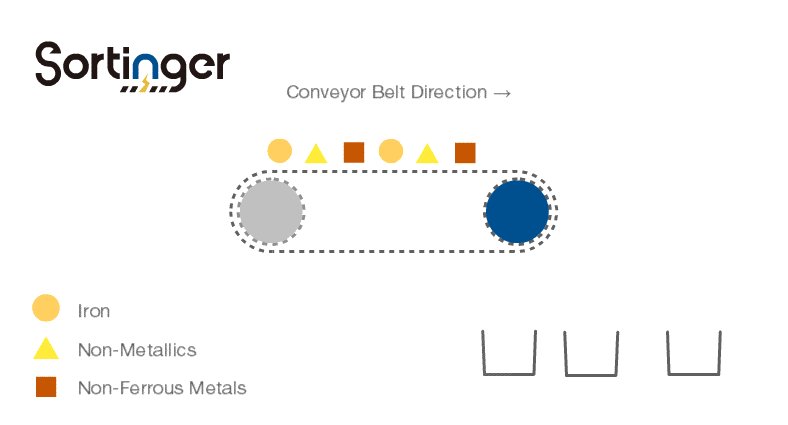

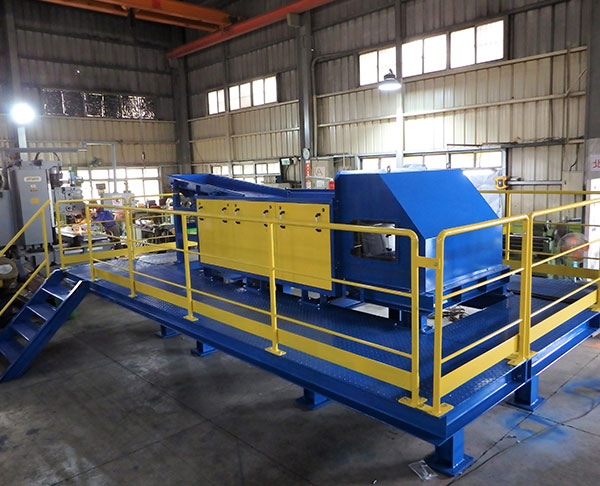

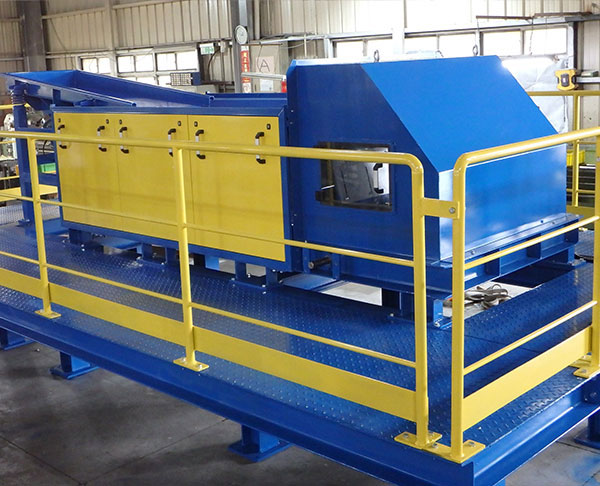

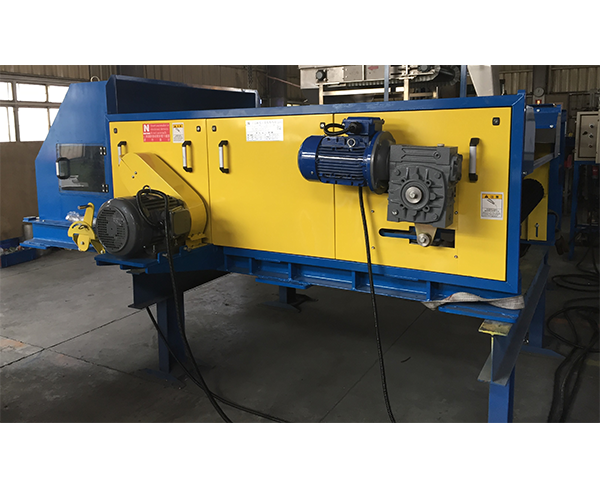

Machine operation

Eddy Current Separator

Video

Eddy Current Separator |Shredded scrap batteries|Sortinger

Eddy Current Separator |Shredded scrap batteries|Sortinger

Eddy Current Separator |Shredded PET Bottle slice|Sortinger

Eddy Current Separator |Shredded PET Bottle slice|Sortinger

Eddy Current Separator |PET Bottle and Aluminum Can|Sortinger

Eddy Current Separator |PET Bottle and Aluminum Can|Sortinger

Eddy Current Separator |Sort Non-ferrous Metal Parts from Shredded Car|Sortinger

Eddy Current Separator |Sort Non-ferrous Metal Parts from Shredded Car|Sortinger

Eddy Current Separator |Aluminum & Plastic Bottle Caps|Sortinger

Eddy Current Separator |Aluminum & Plastic Bottle Caps|Sortinger

Eddy Current Separator |Aluminum Foil & PET Bottle|Sortinger

Eddy Current Separator |Aluminum Foil & PET Bottle|Sortinger

Eddy Current Separator |Shredded E-scrap|Sortinger

Eddy Current Separator |Shredded E-scrap|Sortinger

Eddy Current Separator |Shredded Clothes and Pants|Sortinger

Eddy Current Separator |Shredded Clothes and Pants|Sortinger

Eddy Current Separator |Sort Metal Parts from shredded Woods|Sortinger

Eddy Current Separator |Sort Metal Parts from shredded Woods|Sortinger

Eddy Current Separator |Shredded Glass & Aluminum Cap|Sortinger

Eddy Current Separator |Shredded Glass & Aluminum Cap|Sortinger

Eddy Current Separator |Incineration Bottom Slag|Sortinger

Eddy Current Separator |Incineration Bottom Slag|Sortinger

Eddy Current Separator |Shredded Aluminum Can, Pull ring and others|Sortinger

Eddy Current Separator |Shredded Aluminum Can, Pull ring and others|Sortinger

Eddy Current Separator |Sort Recycled Waste into Ferrous, Non-Ferrous Metals and Others|Sortinger

Eddy Current Separator |Sort Recycled Waste into Ferrous, Non-Ferrous Metals and Others|Sortinger

Eddy Current Separator |Shredded industrial paper|Sortinger

Eddy Current Separator |Shredded industrial paper|Sortinger

Eddy Current Separator |Shredded scrap batteries|Sortinger

Eddy Current Separator |Shredded scrap batteries|Sortinger

Download

Download

General Catalogue

.pdf | 16.69 MB

Download

Download

Download

Eddy Current Separator

.pdf | 1.08 MB

Download

Download

index_materials_icon

Materials Test

Sortinger provides customers with material testing services. There is a complete testing center at our plants. Our design group would further discuss customized planning according to clients’ factory size or material characteristics, to ensure the best and the most suitable solutions for their materials.
